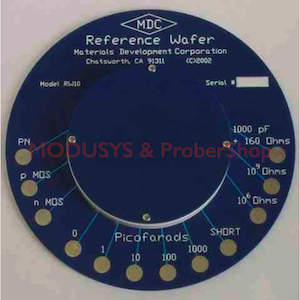

MODEL RW10 REFERENCE WAFER
The Reference Wafer combines capacitors, resistors, MOS devices,
and junction device in a wafer-like configuration.
The RW10 enables the rapid verification of operation for capacitance-
voltage and current-voltage instrumentation.
This convenient reference wafer can be placed on a Hot Chuck System
or Prober and measured in place of a regular wafer.
It can easily help check the integrity of the entire measurement system
including all cables, multiplexers, and Probe System Components.
The RW10 can quickly isolate problems caused by bad probes, defective
cables, improper grounding, or faulty meters.
A calibration certificate accompanies the RW10 Reference Wafer.
The certificate includes all capacitance and resistance values and
capacitance-voltage plots of MOS junction devices.
This 100 mm (4 inch) diameter RW10 device includes contact pads
for the following components:
□ Open Circuit
□ Short Circuit
□ 10 pF Capacitor
□ 100 pF Capacitor
□ 1,000 pF Capacitor
□ 1,000 pF Capacitor + 160 Ohm Resistor
□ 1 Megohm Resistor
□ PN Junction
□ n-MOS Capacitor
□ p-MOS Capacitor
▶상기 10가지의 사항에 대하여, 검증받은 RW10 Reference Wafer로
측정장비의 상태확인과 함께, 측정장비로부터 연결되는 Probe, Cable,
Adapter, Ground의 상태확인 등으로 사용하시는 Probe Station 전반의
상태를 확인하실 수 있습니다.
